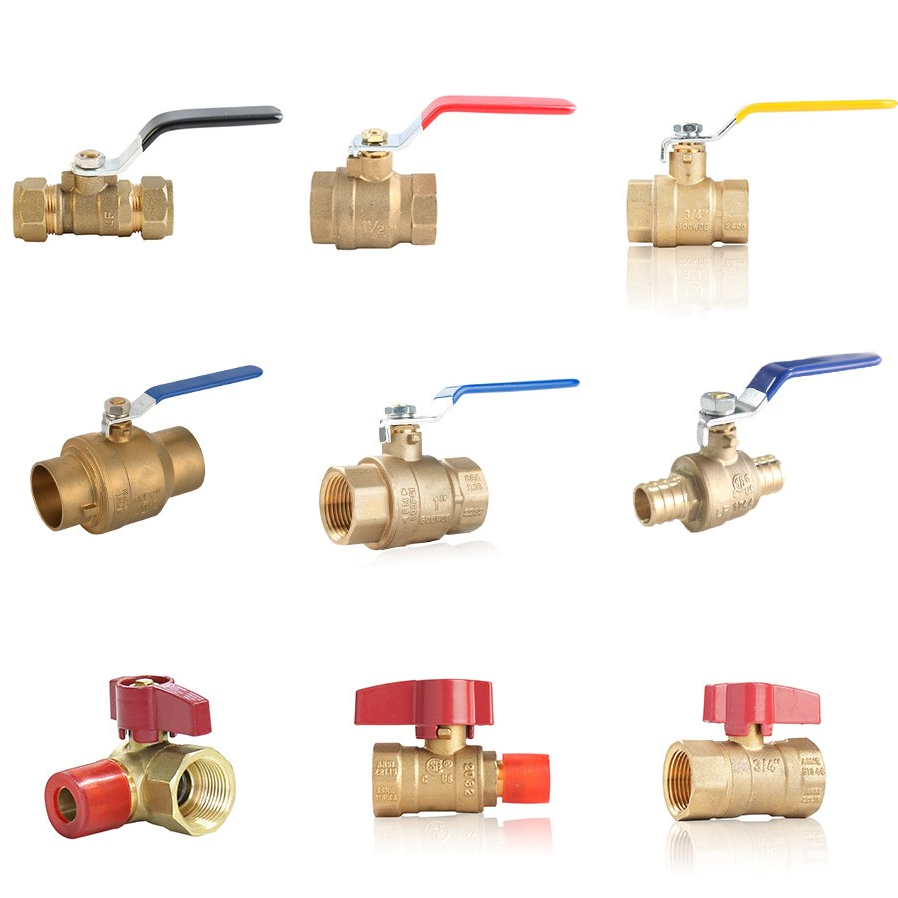

Pressure spikes are the silent killers of industrial piping. A valve might look fine on the outside but fail catastrophically when a pump starts or a line closes suddenly. Brass Forged Ball Valve behave differently. Their homogeneous structure distributes stress evenly, preventing localized yielding. Let’s examine real pressure performance.

Key Technical Specifications:

Max working pressure: 40 bar (580 PSI) for water, oil, gas

Burst pressure: >120 bar (1740 PSI) – 3x safety factor

Seat material: PTFE with 25% glass fiber

Pressure drop at full port: <0.2 bar at 5 m/s flow velocity

How Forging Handles Pressure:

Hydrostatic Testing: Every forged valve body is tested at 60 bar (1.5x working pressure) for 60 seconds. No visible distortion. No leakage. Cast bodies often show micro-sweating.

Cyclic Pressure Test: 10.000 cycles from 0 to 40 bar. Forged valves maintain original torque (typically 2–3 Nm for a 1/2″ valve). Cast valves see torque drop >30% – a sign of seat deformation.

Burst Mode: When overpressured, forged brass yields gradually. You’ll see bulging first. Cast brass bursts abruptly, sending shrapnel. That’s a critical safety difference.

Seat and Seal Behavior:

Under pressure, the PTFE seat creeps slightly. Forged bodies have more consistent bore roundness (within 0.05 mm). This allows the ball to mate perfectly, keeping operating torque low even at 40 bar. Cast bodies may have oval bores, causing high torque or sticking.

Real-World Application:

Consider a hydraulic power unit at 35 bar. A forged ball valve switches easily by hand. A cast valve might need a wrench. Worse, the cast valve’s stem could shear under repeated side loads. Forged stems (also forged, not machined from bar stock) have yield strength >250 MPa.

Recommendation:

Always verify the pressure-temperature curve. Forged brass retains full rating up to 120°C. Above that, derate by 0.5% per °C. Never assume – but with forging, you can rely.
