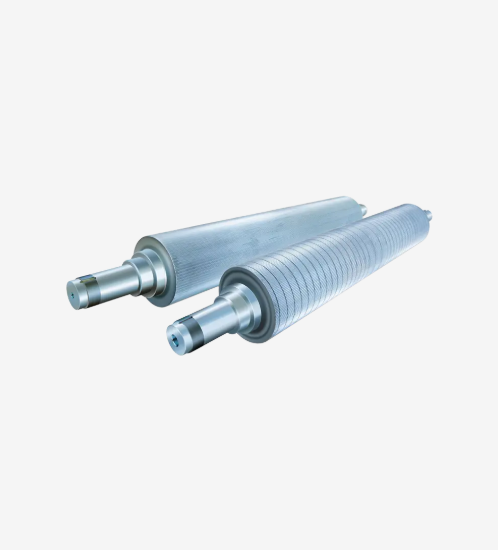

The performance of a Corrugating Roller depends significantly on its material composition and surface treatment technology. In modern corrugated packaging machinery, rollers must withstand high pressure, thermal stress, and continuous wear.

The base structure is typically made from high-strength forged alloy steels such as 48CrMo or 4145 steel, which provide excellent toughness and fatigue resistance. After multiple heat treatment stages, including quenching and tempering, surface hardness reaches around HRC58–60, ensuring mechanical stability under long-term operation.

To enhance durability, surface coatings are applied. One common solution is hard chrome plating, which provides corrosion resistance and moderate wear protection. Chrome layer thickness usually ranges from 0.02 mm to 0.08 mm.

For high-speed production lines, tungsten carbide coating (WC-Co) is widely used. This coating can achieve hardness levels up to 1300 HV, significantly improving wear resistance and extending service life to 30–50 million meters of production output. Some advanced coatings are applied using HVOF (High Velocity Oxygen Fuel) spraying technology for dense and uniform coverage.

Another key factor is surface precision. The flute profile is CNC-machined with accuracy requirements such as:

Cylindricity: ≤0.015 mm

Runout accuracy: ≤0.02 mm

Diameter range: 260–500 mm depending on machine design

These parameters ensure consistent flute geometry and reduce defects such as crushed flutes or uneven bonding.

Thermal channels inside the Corrugating Roller maintain stable heating, usually between 160°C and 180°C, ensuring consistent fiber plasticization.

In summary, the material selection and coating technology of Corrugating Roller directly determine productivity, wear resistance, and long-term operational stability.
