Cone crushers operate through a combination of compression, shear, and inter-particle crushing forces. At the heart of this system is the Cone Crusher Mantle, which moves in an eccentric gyrating motion inside a stationary concave surface.

As material enters the crushing chamber from the top, gravity feeds it into the narrowing gap between the mantle and bowl liner. The mantle does not rotate in a fixed circle; instead, it oscillates in a controlled eccentric path driven by the main shaft assembly. This motion creates alternating compression zones where rocks are repeatedly squeezed and fractured.

The crushing cycle involves three main stages: initial compression, secondary breakage, and discharge. Larger particles are broken at the upper chamber, while finer reduction occurs closer to the discharge opening. This staged crushing process improves size uniformity and increases throughput efficiency.

Typical operational parameters include:

Feed size: 0–300 mm depending on chamber design

Closed side setting (CSS): 6–40 mm

Eccentric throw: 16–50 mm depending on model

Rotation speed: 250–400 RPM equivalent motion range in gyratory systems

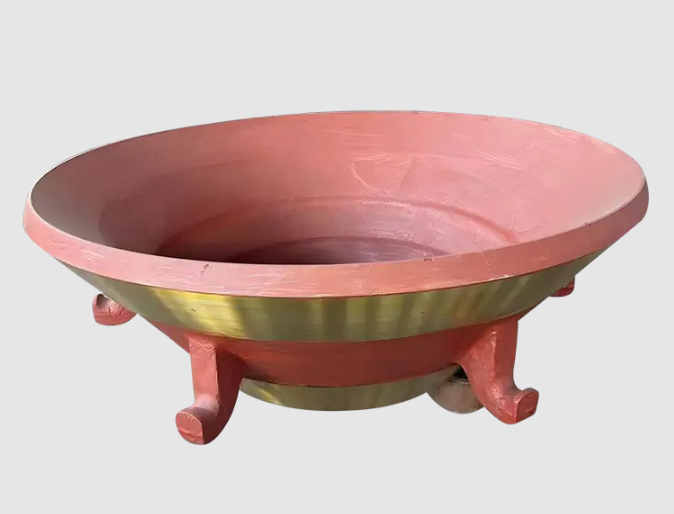

The mantle’s surface is engineered with replaceable wear liners made from manganese steel. During operation, continuous impact causes surface work hardening, which increases resistance to abrasion over time.

Efficient crushing depends on maintaining a balanced feed distribution. Uneven loading can lead to localized wear patterns, reducing mantle lifespan. Proper calibration of feed rate and chamber geometry ensures consistent product output.

The interaction between mantle and concave defines the final product size distribution, making this component essential for controlling aggregate quality in mining, construction, and mineral processing industries.
