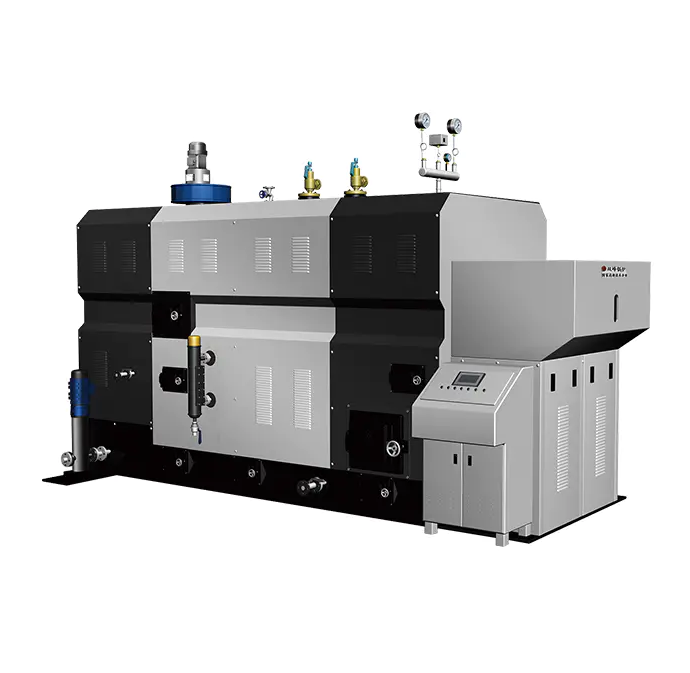

A Biomass Steam Boiler is engineered to convert solid renewable fuel into usable thermal energy with controlled combustion and heat recovery systems. Efficiency depends on furnace design, heat exchange structure, and the stability of fuel feeding.

Modern industrial biomass boilers typically achieve thermal efficiency between 80% and 92%, depending on fuel type and system configuration . This performance range makes them a practical solution for industries requiring continuous steam supply.

Furnace Structure and Combustion Stability

The furnace is the core of energy conversion. Biomass fuel enters through automatic feeding equipment and is distributed evenly across a chain grate or reciprocating grate system.

Inside the furnace, combustion is divided into temperature zones:

Low-temperature drying zone

Volatile release and ignition zone

High-temperature combustion zone

Ash burnout zone

This staged combustion design ensures stable flame formation and reduces incomplete combustion losses.

Heat Transfer System Design

Heat generated in the furnace is absorbed by water walls and heat exchange tubes. The system includes:

Water-cooled furnace walls

Steam drum for vapor separation

Convection tube bundles for heat absorption

Water gradually transforms into high-pressure steam under controlled circulation conditions. Depending on design, steam pressure may range from 1.0 MPa up to 2.5 MPa, while steam temperature can exceed 200°C in industrial applications .

Fuel Flexibility and Adaptation

Biomass boilers are designed to handle multiple fuel types such as:

Wood pellets

Agricultural straw

Rice husk

Coconut shell

Biomass briquettes

Fuel calorific value and moisture content directly influence combustion efficiency. Lower moisture content generally improves ignition speed and thermal output stability.

Efficiency Enhancement Systems

Several auxiliary systems improve performance:

Economizer: recovers heat from flue gas

Air preheater: warms combustion air

Induced draft fan: stabilizes furnace pressure

Dust collector: reduces particulate emissions

These components work together to reduce heat loss and improve fuel utilization efficiency.

Typical Industrial Specifications

A representative configuration may include:

Capacity: 2–20 t/h

Working pressure: 1.25–2.5 MPa

Steam temperature: 194–226°C

Water volume: varies from 6–22 m³ depending on model

Exhaust temperature: approximately 165–175°C

These values reflect common industrial-grade biomass steam systems used in continuous production environments.

Operational Efficiency Factors

Efficiency performance is influenced by:

Fuel feeding stability

Combustion air distribution

Heat exchange surface condition

Ash removal speed

Flue gas temperature control

Even small variations in fuel moisture or air ratio can affect steam output consistency.

Industrial Usage Scenarios

Typical applications include:

Textile production lines

Food processing plants

Chemical heating systems

Paper manufacturing

Drying and sterilization systems

Stable steam output ensures process continuity in multi-shift production environments.

Conclusion

A Biomass Steam Boiler achieves efficient energy conversion through staged combustion, advanced heat exchange, and multi-stage heat recovery systems. Its performance depends on fuel quality, furnace design, and operational control systems, making it a flexible option for industrial steam applications.
